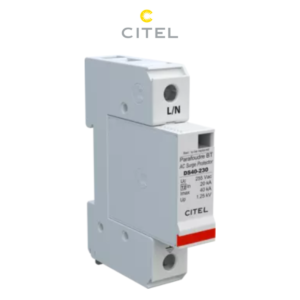

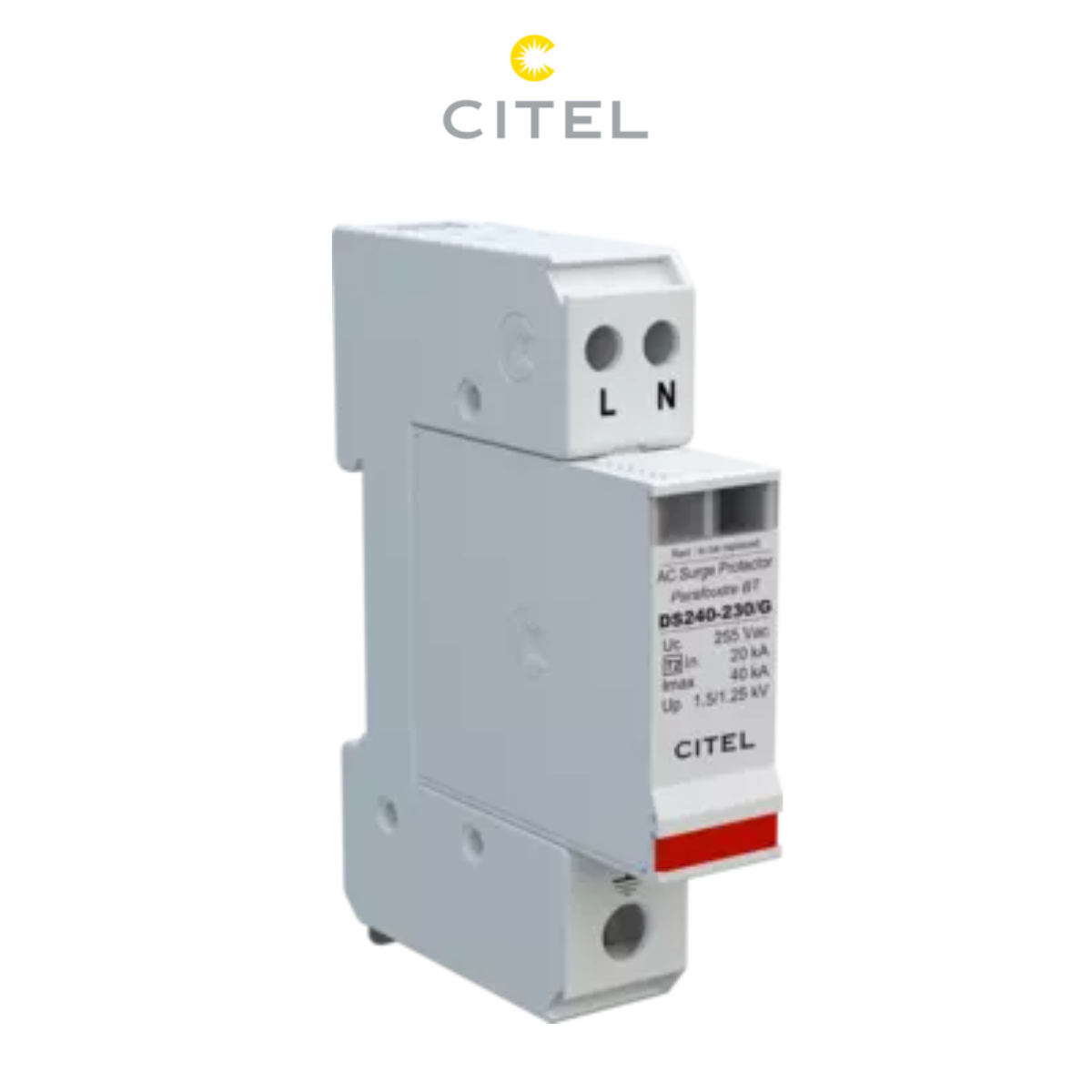

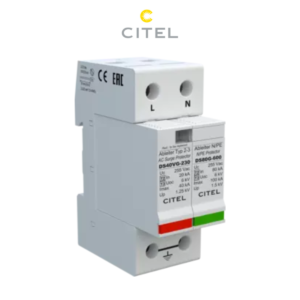

The compact monophasé Type 2 surge protectors, DS240, are primarily used for protecting monophasé networks at the low voltage switchgear (TGBT) level. These devices provide common mode protection (between active conductors and Earth) or both common and differential mode protection (for version DS240xxx/G). The electrical design of the DS240 includes high-power varistors equipped with disconnectors and associated indicators, along with a specific spark gap. It features a fixed base for simple and quick maintenance in case of a fault (network disconnection).
Key Features:
- Compact Monophasé Surge Protector
- In: 20 kA
- Imax: 40 kA
- Protection Modes: Common and Differential
- Plug-in module for easy maintenance
- Optional remote signaling
- Compliant with NF EN 61643-11 and IEC 61643-11
- UL1449 ed.4 certified
Specifications:
- Surge Protector Type: 2
- Network: 230 V Monophasé
- Neutral System: TT-TN
- Nominal Line Voltage [Un]: 230 VAC
- Max AC Operating Voltage L-N [Uc]: 255 VAC
- Max Line Current [IL]: 20 A
- Temporary Overvoltage Characteristic (TOV) 5 sec [UT]: 335 VAC withstand
- Temporary Overvoltage Characteristic (TOV) 120 min [UT]: 440 VAC disconnection
- TOV N/PE (High TOV) [UT]: 1200 V/300 A/200 ms withstand
- Continuous Operating Current [Ic]: 0.5 mA
- Residual Current [Ipe]: None
- Follow Current [If]: None
- Nominal Discharge Current [In]: 20 kA
- Max Discharge Current [Imax]: 40 kA
- Total Max Discharge Current [Imax Total]: 40 kA
- Protection Modes: Common/Differential
- Connection Modes: L/N and N/PE
- Protection Level [Up]: 1.25 kV
- Residual Voltage at 5 kA [Up-5kA]: 1.5/0.9 kV
- Protection Level L/N [Up L/N]: 1.25 kV
- Allowable Short-Circuit Current [Isccr]: 10,000 A
- Operating Temperature: -40/+85 °C
- Protection Rating: IP20
- Network Connection: via screws: 1.5-10 mm² (L/N) or 2.5-25 mm² (PE)
