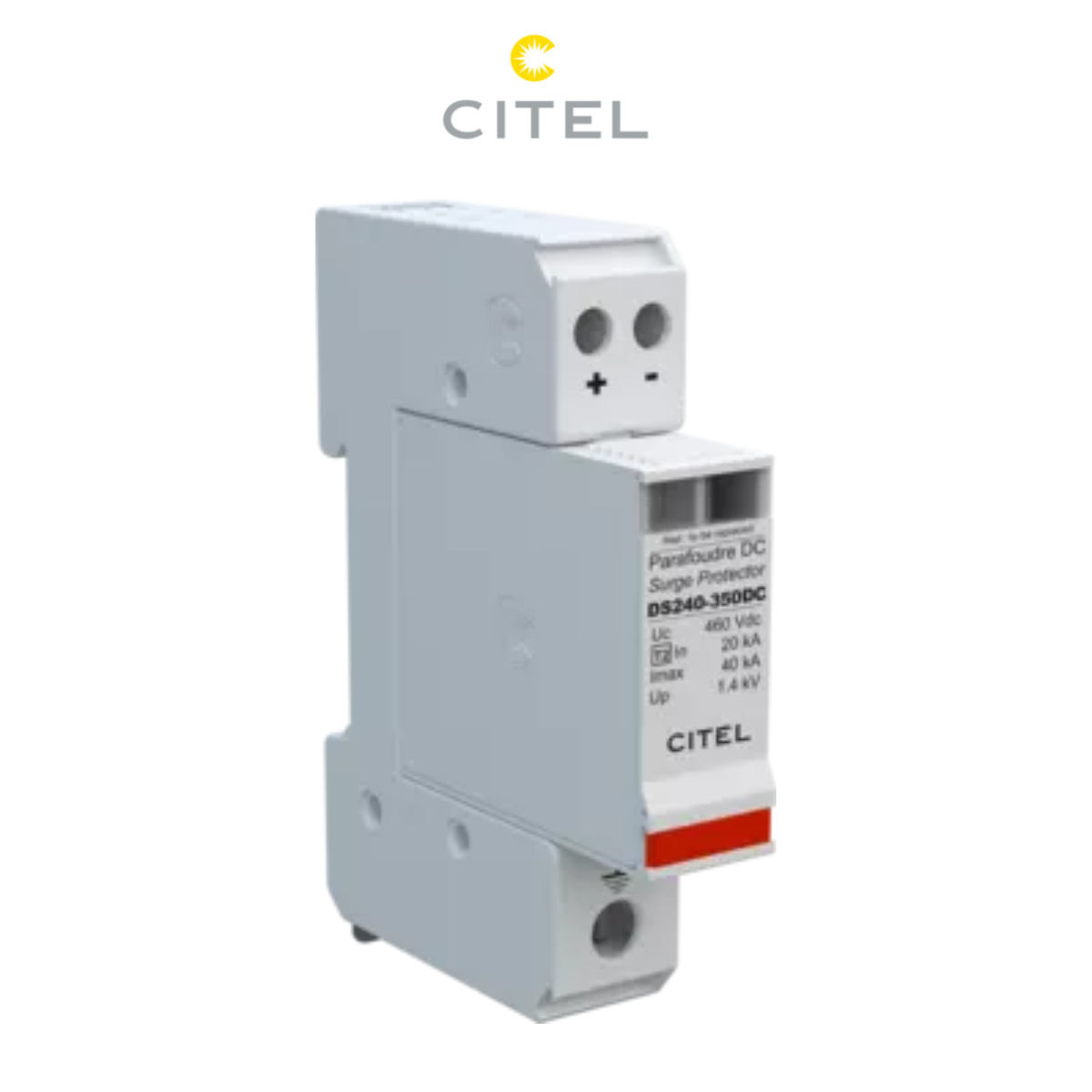

The DS2x0-dc surge protectors are designed to protect equipment connected to continuous power supplies. These devices utilize a varistor-based design, with voltage suited to the network. Equipped with thermal disconnectors, they allow for monitoring potential end-of-life conditions. The surge protectors are mounted on a symmetrical rail and connected in parallel to the network they protect.
Features:
- Surge protector for DC or PV power supply
- 350 VDC protection
- Compact design
- Imax: 40 kA
- Plug-in module for easy maintenance
- Optional remote signaling
Specifications:
- Surge Protector Type: 2
- Network: DC or PV Network, 350 VDC
- Nominal DC Voltage [Un-dc]: 350 VDC
- Nominal PV Network Voltage [Uocstc]: 350 VDC
- Max AC Operating Voltage L-N [Uc]: 350 VAC
- Max PV Operating Voltage [Ucpv]: 460 VDC
- Max DC Operating Voltage [Uc]: 460 VDC
- Max Line Current [IL]: 20 A
- Residual Current [Ipe]: < 0.1 mA
- Continuous Operating Current [Ic]: < 0.1 mA
- Permanent PV Operating Current [Icpv]: < 0.1 mA
- Follow Current [If]: None
- Nominal Discharge Current [In]: 20 kA
- Max Discharge Current [Imax]: 40 kA
- Total Max Discharge Current [Imax Total]: 80 kA
- Short-Circuit Current Capability PV [Iscpv]: 1000 A
- Connection Mode(s): +/-/PE
- Protection Mode(s): Common Mode
- Common/Differential Mode Protection [Up]: 1400 V
