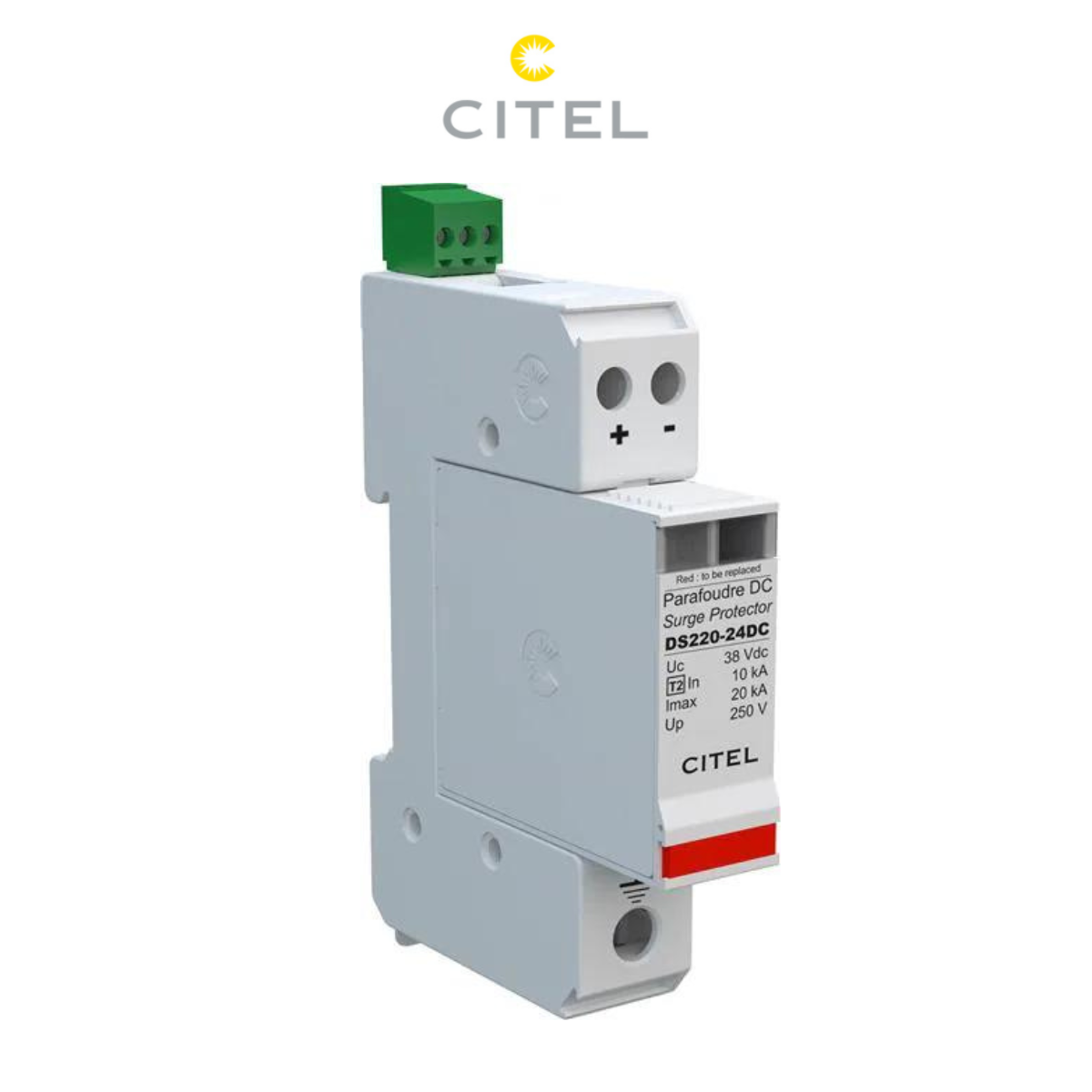

he DS230-24DC series surge protectors are designed to shield equipment connected to DC power supplies from transient overvoltages caused by lightning. These compact devices use voltage-varistors tailored to the network (ranging from 12 to 350 VDC). The DS230S-24DC model includes varistors with integrated thermal disconnectors and associated indicators for monitoring their potential end of life. Optional versions with remote signaling are also available (DS230S-24DC). The plug-in module allows for quick and easy maintenance in case of failure (network disconnection). The DS230-24DC is DIN rail-mounted and connects in parallel to the network for protection.
Key Features:
- Ultra-low protection level (Up)
- Compact design
- Imax: 20 kA
- Plug-in module
- Optional remote signaling
Specifications:
- Surge Protector Type: 2
- Network: 24 VDC DC Network
- Nominal DC Voltage [Un-dc]: 24 VDC
- Max AC Operating Voltage L-N [Uc]: 50 VAC
- Max DC Operating Voltage [Uc]: 38 VDC
- Max Line Current [IL]: 20 A
- Residual Current [Ipe]: < 0.1 mA
- Continuous Operating Current [Ic]: < 0.1 mA
- Permanent PV Operating Current [Icpv]: < 0.1 mA
- Follow Current [If]: None
- Nominal Discharge Current [In]: 10 kA
- Max Discharge Current [Imax]: 20 kA
- Total Max Discharge Current [Imax Total]: 40 kA
- Short-Circuit Current Capability PV [Iscpv]: 1000 A
- Connection Mode(s): +/-/PE
- Protection Mode(s): Common Mode
