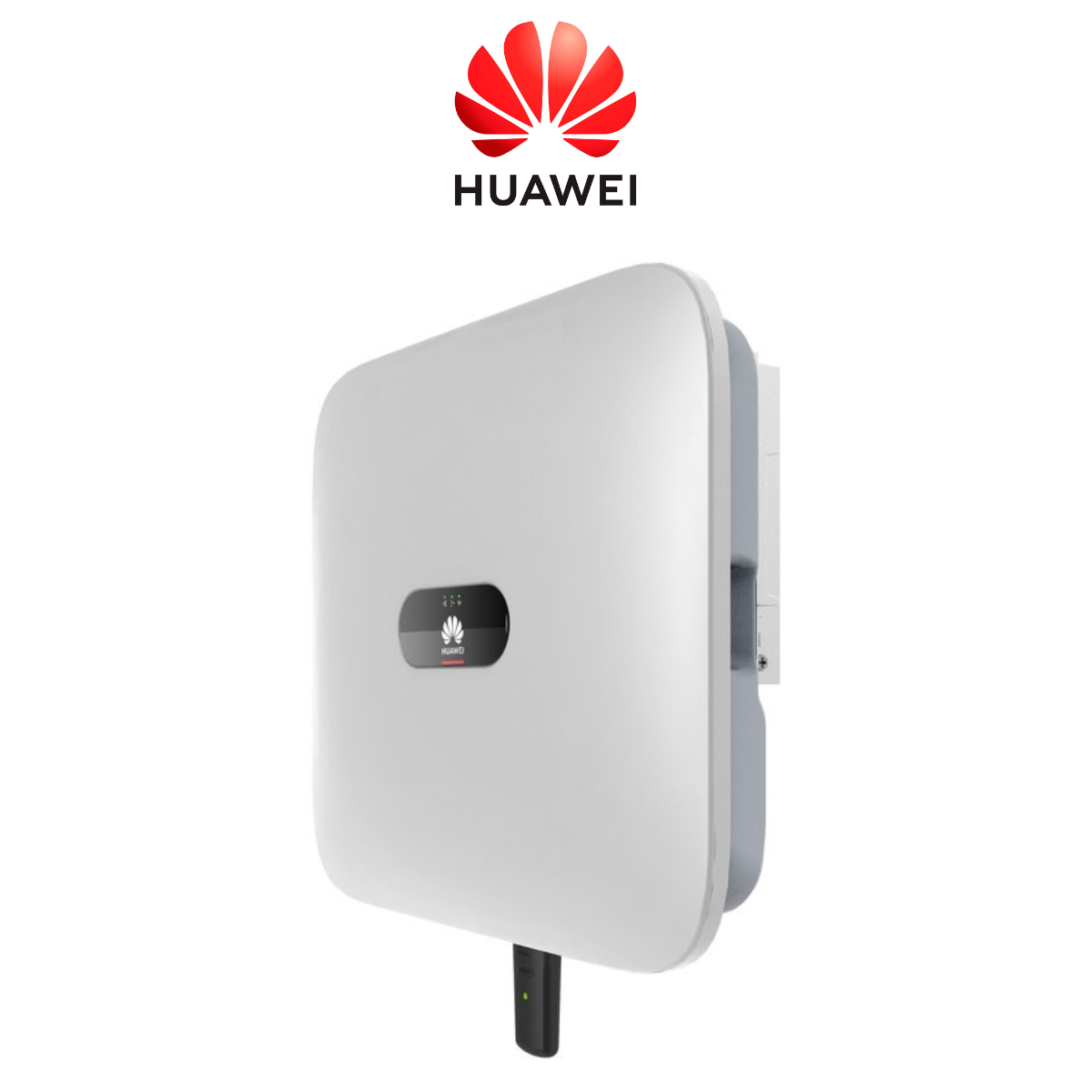

The Huawei SUN2000-10KTL-M1 is an innovative solar inverter designed for three-phase grid-tied solar installations without a battery. Its compact and lightweight design provides flexible installation options, and it allows for easy real-time control and monitoring.
This inverter supports three-phase installations up to 10,000 W and features two MPPTs (Maximum Power Point Trackers).
Performance
- Maximum Efficiency: 98.6%
DC Input (PV)
- Max Recommended DC Power: 11,000 Wp
- Max Input Voltage: 1,100 V
- Operating Voltage Range: 140 V – 980 V
- Max Input Current per MPPT: 11 A
- Max Short-Circuit Current per MPPT: 15 A
- Start-Up Voltage: 200 V
DC Input (Battery)
- MPPT Operating Voltage Range: 600 V – 980 V
- Max Operating Current: 16.7 A
- Max Charging Power: 10,000 W
- Max Discharging Power: 10,000 W
AC Output (Grid-Connected)
- Nominal AC Power Output: 10,000 W
- Max Apparent Power: 11,000 VA
- Nominal Output Voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N + PE
- Nominal AC Grid Frequency: 50 Hz / 60 Hz
- Nominal Output Current: 13.5 A
- Adjustable Power Factor: 0.8 capacitive to 0.8 inductive
- Max Total Harmonic Distortion: ＜3%
AC Output (Off-Grid)
- Backup Box Model: Backup Box – B1
- Max Apparent Power: 3,300 VA
- Nominal Output Voltage: 220 V / 230 V
- Max Output Current: 15 A
- Power Factor Range: 0.8 leading to 0.8 lagging
Protection Features
- Input Disconnection Device: Yes
- Anti-Islanding Protection: Yes
- DC Reverse Polarity Protection: Yes
- Isolation Monitoring: Yes
- DC Surge Protection: Yes, compatible with TYPE II protection (EN/IEC 61643-11)
- AC Surge Protection: Yes, compatible with TYPE II protection (EN/IEC 61643-11)
- Residual Current Monitoring: Yes
- AC Overcurrent Protection: Yes
- AC Short-Circuit Protection: Yes
- AC Overvoltage Protection: Yes
- Arc Fault Detection: Yes
- Remote Ripple Control: Yes
- DC MBUS to Optimizer: No
General Data
- Communication Interfaces: RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE; 4G/3G/2G via Smart Dongle-4G (optional)
- Dimensions (L x H x W): 525 mm x 470 mm x 146.5 mm
- Weight (with mounting bracket): 17 kg
- Operating Temperature Range: -25°C to +60°C
- Protection Rating: IP65
- Display: LED indicators; Integrated WLAN + FusionSolar App
