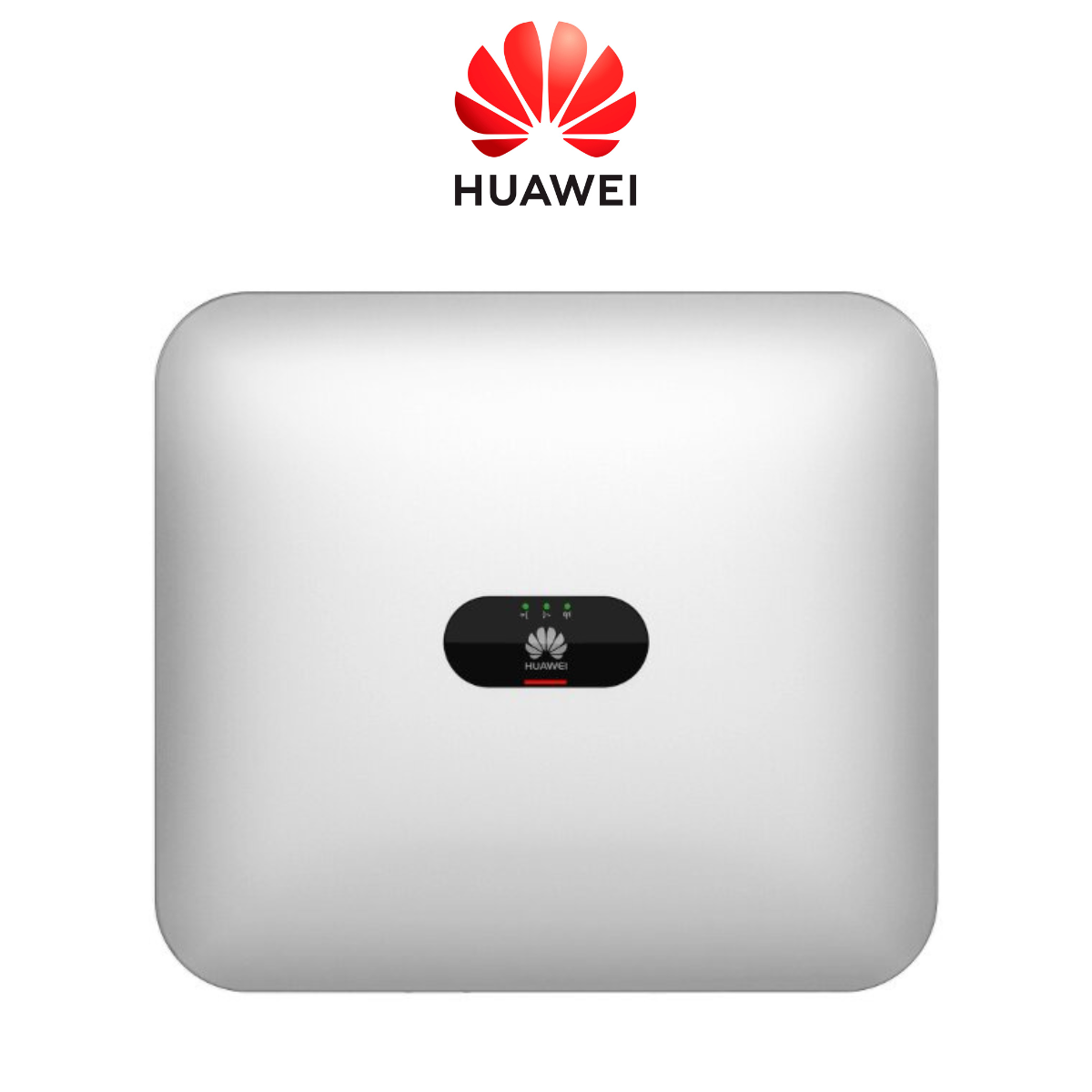

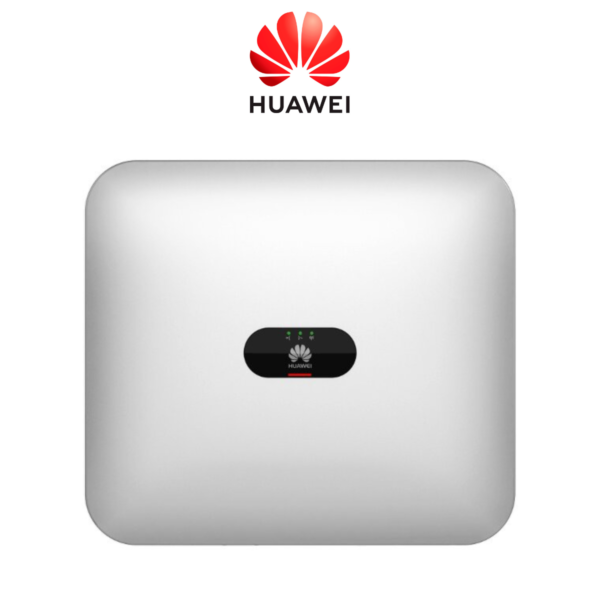

The Huawei SUN2000-20KTL-M2 solar inverter is a cutting-edge solution designed for solar systems connected to a three-phase grid without battery storage. Its compact and sleek design allows for easy installation and flexibility. It offers real-time control and monitoring, making management effortless.
This grid-tied Huawei SUN2000-20KTL-M2 inverter supports three-phase installations up to 20,000 W and is equipped with two Maximum Power Point Trackers (MPPTs).
Download SUN2000-20KTL-M2 Datasheet
Performance
- Maximum Efficiency: 98.65%
Input
- Max Recommended DC Power: 30,000 Wp
- Max Input Voltage: 1,080 V
- Operating Voltage Range: 160 V – 950 V
- Max Input Current per MPPT: 22 A
- Max Short-Circuit Current per MPPT: 30 A
- Start-Up Voltage: 200 V
Output
- Nominal Output Power: 20,000 W
- Max Apparent Power: 22,000 VA
- Nominal Output Voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
- Nominal AC Grid Frequency: 50 Hz / 60 Hz
- Nominal Output Current: 33.5 A
- Adjustable Power Factor: 0.8 capacitive to 0.8 inductive
- Max Total Harmonic Distortion: ＜3%
Protection Features
- Input-Side Disconnection Device: Yes
- Anti-Islanding Protection: Yes
- AC Overcurrent Protection: Yes
- AC Short-Circuit Protection: Yes
- AC Overvoltage Protection: Yes
- DC Reverse Polarity Protection: Yes
- DC Surge Protection: TYPE II
- AC Surge Protection: Yes, compliant with TYPE II per EN/IEC 61643-11
- Residual Current Monitoring: Yes
- Arc Fault Detection: Yes
- Ripple Control Receiver: Yes
- Built-in PID Recovery: Yes
General Data
- Communication Interfaces: RS485; WLAN/Ethernet (optional via Smart Dongle-WLAN-FE)
- Dimensions (L x H x W): 525 x 470 x 262 mm
- Weight (with mounting bracket): 25 kg
- Operating Temperature Range: -25°C to +60°C
- Protection Rating: IP65
- Display: LED indicators; Integrated WLAN + FusionSolar App
