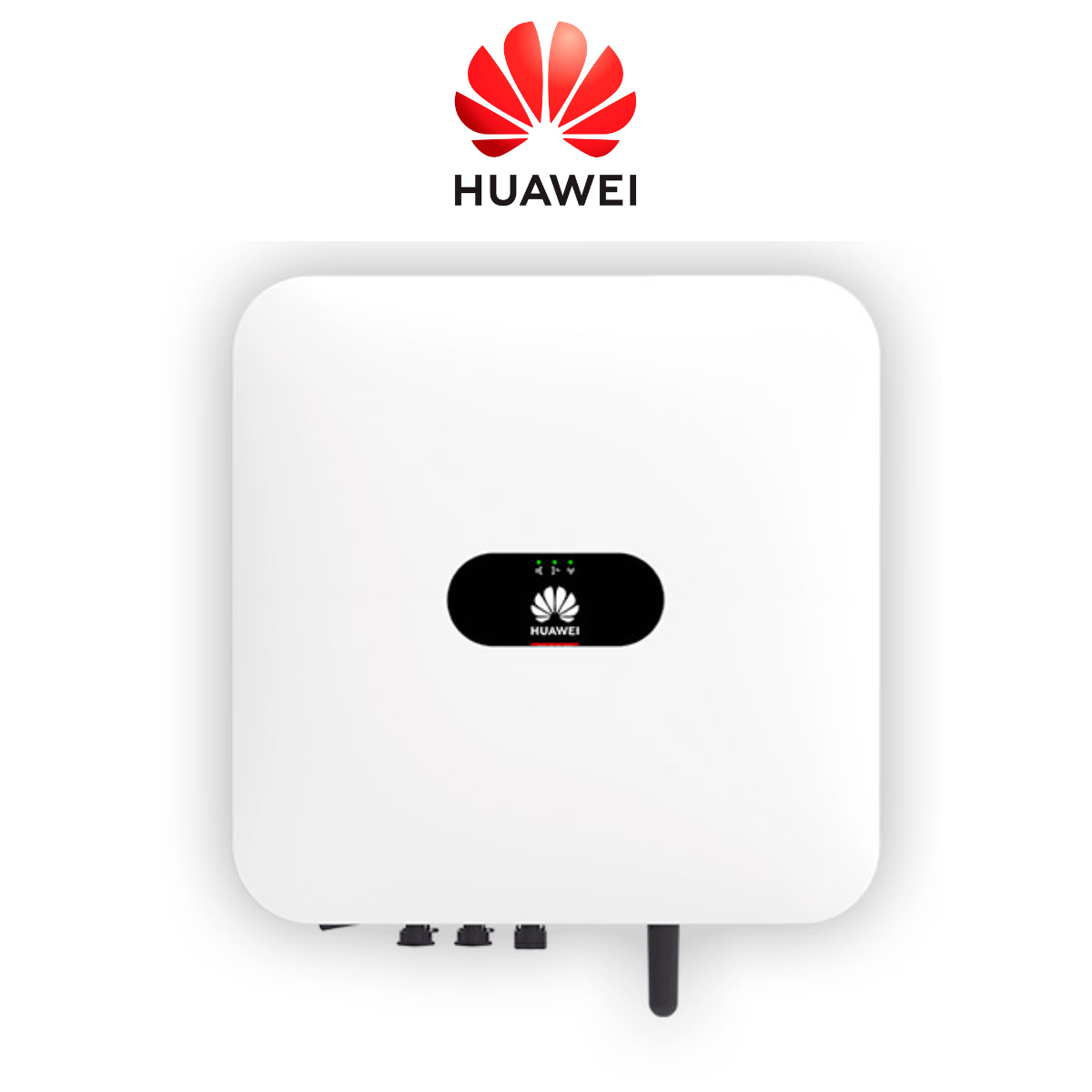

The Huawei SUN2000-5KTL-L1 is an innovative solution designed for single-phase solar installations with battery connection. Its compact and lightweight design allows for flexible installation, and it offers easy real-time control and monitoring.
This Huawei SUN2000-5KTL-L1 inverter supports single-phase installations up to 5,000 W and includes two MPPTs (Maximum Power Point Trackers).
Performance
- Maximum Efficiency: 98.4%
DC Input
- Max Recommended DC Power: 7,500 Wp
- Max Input Voltage: 600 V
- Operating Voltage Range: 90 V – 560 V
- Max Input Current per MPPT: 12.5 A
- Max Short-Circuit Current per MPPT: 18 A
- Start-Up Voltage: 100 V
Battery DC Input
- MPPT Operating Voltage Range: 350 V – 450 V
- Number of Inputs: 1
- Number of MPPT Trackers: 2
AC Output
- Nominal Active AC Power: 5,000 W
- Max Apparent AC Power: 5,500 VA
- Nominal Output Voltage: 220 Vac / 230 Vac / 240 Vac
- Nominal AC Grid Frequency: 50 Hz / 60 Hz
- Nominal Output Current: 25 A
- Adjustable Power Factor: 0.8 capacitive to 0.8 inductive
- Max Total Harmonic Distortion: ＜3%
Protection Features
- Anti-Islanding Protection: Yes
- DC Reverse Polarity Protection: Yes
- Isolation Monitoring: Yes
- DC Surge Protection: Yes
- AC Surge Protection: Yes
- Residual Current Monitoring: Yes
- AC Overcurrent Protection: Yes
- AC Short-Circuit Protection: Yes
- AC Overvoltage Protection: Yes
- Arc Fault Detection: Yes
- Battery Reverse Charging from Grid: Yes
General Data
- Communication Interfaces: Ethernet via Smart Dongle-WLAN-FE (optional); 4G/3G/2G via Smart Dongle-4G (optional)
- Dimensions (L x H x W): 365 mm x 365 mm x 156 mm
- Weight (with mounting bracket): 12 kg
- Operating Temperature Range: -25°C to +60°C
- Protection Rating: IP65
- Display: LED indicators; Integrated WLAN + FusionSolar App
