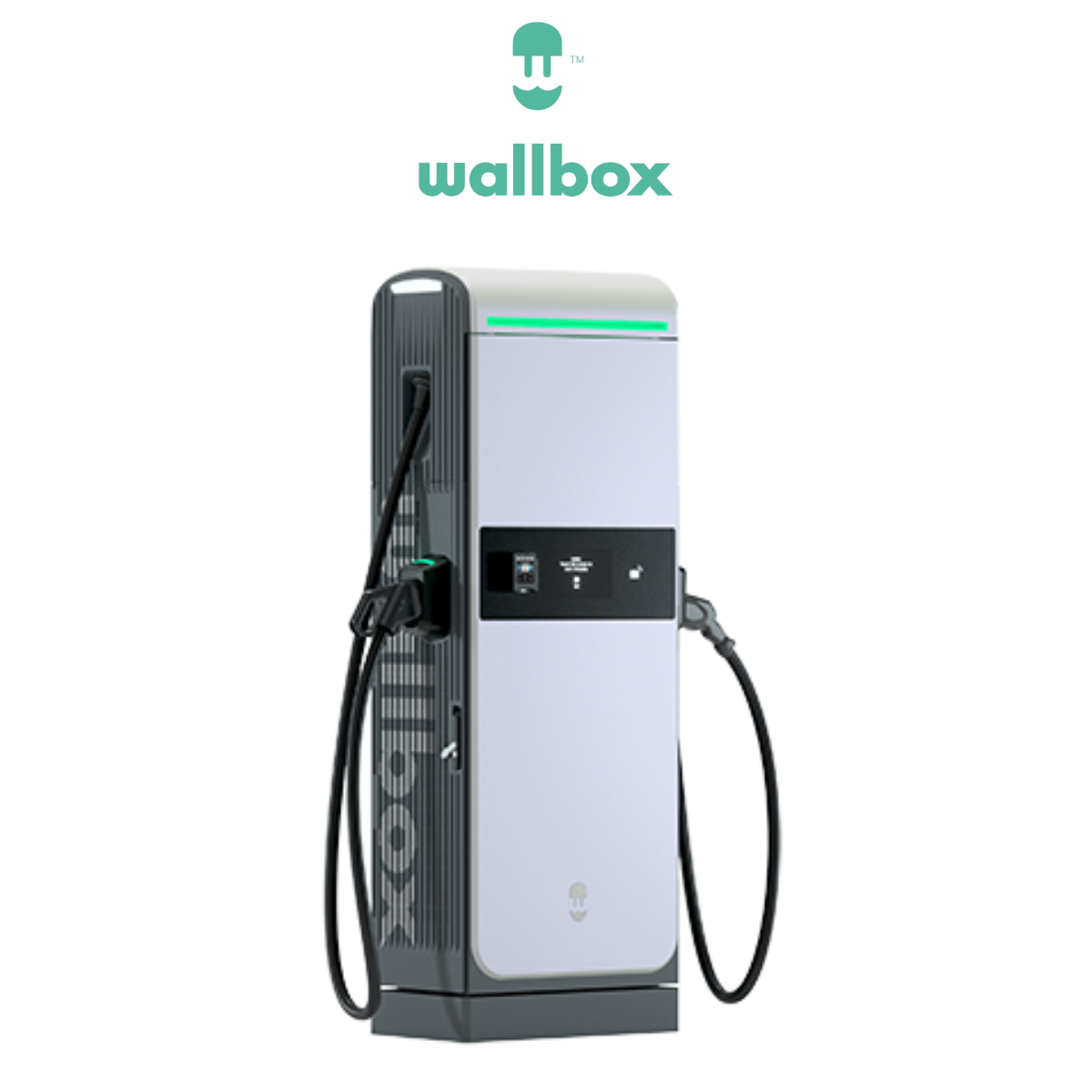

Introducing Supernova, the advanced DC fast charger designed by Wallbox, crafted to deliver superior efficiency and reliability. It maximizes uptime, benefiting both electric vehicle drivers and charging point operators.
With a power output of 60 kW, Supernova can add up to 100 km of range in under 15 minutes—perfect for covering the average daily urban commute while drivers take a short break, run errands, or do some shopping. This makes it ideal for public charging in urban and interurban areas, as well as semi-public locations such as supermarkets, malls, or fast-food restaurants.
Key Features:
- Reliability: Engineered for maximum uptime.
- Efficiency: Easy to use with a reduced total cost of ownership.
- User-Centric Design: Seamlessly delivers a smooth customer experience.
- Flexibility: Adaptable to current and future charging needs.
Technical Specifications:
- Connectors: CCS2, CHAdeMO
- Charging Protocol: ISO15118 (includes Plug&Charge), CHAdeMO
- Cable Length: 3m, 5m (optional)
- Output Power: 60 kW
- Efficiency Rating: Up to 97%
- Power Factor: 0.98
- THD: 5%
- Output Voltage: 150-500 V
- Output Current: 150 A
- Input Voltage: 400 V ± 10%, 50 Hz
- Input Current: 91 A
- Electrical Protections: Grid disconnection, MCB, Surge limiter
- Power Balancing: Static and dynamic local load balancing
- Power Split: Simultaneous charging of two vehicles (30 kW each), with power returning to 60 kW when one vehicle disconnects.
- Environmental Ratings: IP54, IK10, suitable for altitudes up to 2000m
- Operating Temperature: -35ºC to 50ºC
- Storage Temperature: -35ºC to 70ºC
- Cooling System: Active air cooling
- Noise Level: < 55dBA
- Humidity: 5% to 95%, non-condensing
- Dimensions (with cable): 2000 x 453 x 868 mm
- Dimensions (without cable): 2000 x 453 x 714 mm
- Weight: 250 kg
- Accessibility: Wheelchair-friendly access, environmental lighting
- Branding Options: Customizable graphic templates available
- Connectivity: Ethernet, 2G/3G/4G/LTE, space for external router (DIN rail)
- Backend Communication Protocol: OCPP 1.6J
- Commissioning Interface: Local (via Ethernet, no additional software needed) and remote management
- Schuko 230V socket
- Diagnostics: Self-diagnostic system
- User Interface: 10″ anti-vandal color touchscreen (sunlight-readable) with LED status indicators
- Authentication: Via app (OCPP) or RFID (MI-FARE, ISO/IEC14443A/B, ISO/IEC15693, FeliCa, NFC)
- Ad-Hoc Payments: 3-in-1 contactless credit card reader (supports Apple/Android Pay, chip, magnetic stripe, QR code display)
Supernova delivers the perfect combination of performance, flexibility, and reliability for all your charging needs.
